Emx::MediaServerAovChn类 参考

#include "MediaServerAov.hpp"

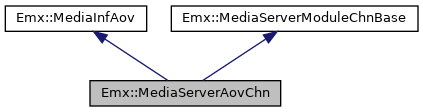

类 Emx::MediaServerAovChn 继承关系图:

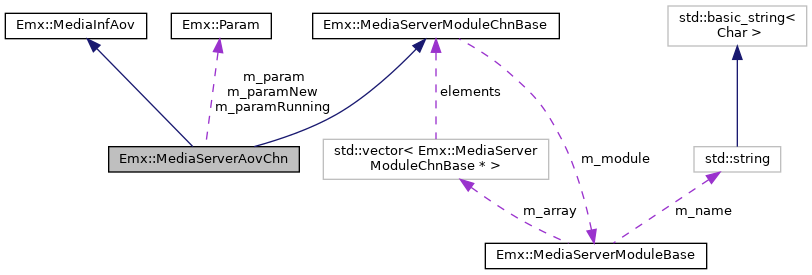

Emx::MediaServerAovChn 的协作图:

Public 成员函数
	MediaServerAovChn (int32_t chn)
	~MediaServerAovChn () override=default
ErrCodeE	LoadParam () override
ErrCodeE	SaveParam () override
void *	GetParam () override
void *	GetNewParam () override
void *	GetRunningParam () override
int	GetParamSize () override
ErrCodeE	GetParamDefaultData (std::string &data) override
ErrCodeE	OnRecvReqChn (uint32_t method, const char *data, int32_t size, std::string &out) override
virtual ErrCodeE	PushAiTrigger (bool trigger)
	推送ai触发消息 更多...
Public 成员函数 继承自 Emx::MediaServerModuleChnBase
	MediaServerModuleChnBase (MediaModE mod, int32_t chn)
virtual	~MediaServerModuleChnBase ()=default
virtual ErrCodeE	OnServerCreate ()
	创建模块通道 更多...
virtual ErrCodeE	OnCreate ()=0
	创建模块通道 更多...
virtual void	OnServerDestroy ()
	销毁模块通道 更多...
virtual void	OnDestroy ()=0
	销毁模块通道 更多...
virtual ErrCodeE	OnParamChanged ()=0
	参数改变 更多...
virtual ErrCodeE	GetParamRange (Json::Value &range)
virtual void	NewParamInCome (const char *data, int size)
virtual bool	ParamValid ()
virtual void	GetRunningParamData (std::string &data)
virtual void	GetParamData (std::string &data)
virtual bool	ParamChanged ()
virtual void	UpdateParam ()
virtual void	UpdateRunningParam ()
virtual void	ReleaseNewParam ()
virtual ErrCodeE	OnRecvReqChnSpec (uint32_t method, const char *data, int32_t size, std::string &out)
int32_t	GetChn ()

Protected 成员函数
virtual ErrCodeE	UpdateStatus (AovStatusTypeE type)
	更新aov状态 需要mediaServer实现 更多...
virtual ErrCodeE	PushMessage (AovPushTypeE type, char *data=NULL, int dataSize=0)
	推送aov消息 需要mediaServer调用 更多...

Protected 属性
Param	m_param
Param	m_paramNew
Param	m_paramRunning
Protected 属性 继承自 Emx::MediaServerModuleChnBase
MediaServerModuleBase *	m_module
int32_t	m_chn

额外继承的成员函数
Public 类型 继承自 Emx::MediaInfAov
enum class	AovModeE : uint8_t { Normal = 0 , LowPower }
	aov模式枚举 更多...
enum class	AovStatusTypeE : uint8_t {   VideoFrameSuccessful = 0 , VideoFrameFailed , TargetTrigger , TargetLost ,   EnterSleep , HighFrameMode , LowFrameMode , StopFrame }
	aov状态类型 更多...
enum class	AovPushTypeE : uint8_t {   SleepReady = 0 , HighFrameRate , LowFrameRate , UartData ,   WakeUp }
	aov推送类型 更多...

构造及析构函数说明

MediaServerAovChn()

Emx::MediaServerAovChn::MediaServerAovChn ( int32_t  chn )

inlineexplicit

~MediaServerAovChn()

Emx::MediaServerAovChn::~MediaServerAovChn ( )

overridedefault

成员函数说明

LoadParam()

ErrCodeE Emx::MediaServerAovChn::LoadParam ( )

overridevirtual

重载 Emx::MediaServerModuleChnBase .

SaveParam()

ErrCodeE Emx::MediaServerAovChn::SaveParam ( )

overridevirtual

重载 Emx::MediaServerModuleChnBase .

GetParam()

void* Emx::MediaServerAovChn::GetParam ( )

inlineoverridevirtual

实现了 Emx::MediaServerModuleChnBase.

GetNewParam()

void* Emx::MediaServerAovChn::GetNewParam ( )

inlineoverridevirtual

实现了 Emx::MediaServerModuleChnBase.

GetRunningParam()

void* Emx::MediaServerAovChn::GetRunningParam ( )

inlineoverridevirtual

实现了 Emx::MediaServerModuleChnBase.

GetParamSize()

int Emx::MediaServerAovChn::GetParamSize ( )

inlineoverridevirtual

实现了 Emx::MediaServerModuleChnBase.

GetParamDefaultData()

ErrCodeE Emx::MediaServerAovChn::GetParamDefaultData ( std::string &  data )

overridevirtual

重载 Emx::MediaServerModuleChnBase .

OnRecvReqChn()

ErrCodeE Emx::MediaServerAovChn::OnRecvReqChn ( uint32_t  method, const char *  data, int32_t  size, std::string &  out  )

overridevirtual

重载 Emx::MediaServerModuleChnBase .

PushAiTrigger()

virtual ErrCodeE Emx::MediaServerAovChn::PushAiTrigger ( bool  trigger )

virtual

参数

trigger

[in] 是否触发

返回

ErrCodeE

UpdateStatus()

virtual ErrCodeE Emx::MediaServerAovChn::UpdateStatus ( AovStatusTypeE  type )

protectedvirtual

参数

type

[in] 状态类型

返回

ErrCodeE

实现了 Emx::MediaInfAov.

PushMessage()

virtual ErrCodeE Emx::MediaServerAovChn::PushMessage ( AovPushTypeE  type, char *  data = NULL, int  dataSize = 0  )

protectedvirtual

参数

type	[in] 推送类型
data	[in] 数据
dataSize	[in] 数据大小

返回

ErrCodeE

类成员变量说明

m_param

Param Emx::MediaServerAovChn::m_param

protected

被这些函数引用 GetParam().

m_paramNew

Param Emx::MediaServerAovChn::m_paramNew

protected

被这些函数引用 GetNewParam().

m_paramRunning

Param Emx::MediaServerAovChn::m_paramRunning

protected

被这些函数引用 GetRunningParam().
