视频输出

#include "MediaAov.hpp"

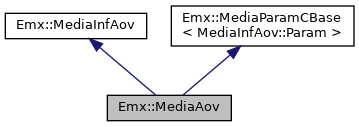

类 Emx::MediaAov 继承关系图:

Emx::MediaAov 的协作图:

Public 成员函数
	MediaAov (int32_t chn)

ErrCodeE	UpdateStatus (AovStatusTypeE type) override
	更新aov状态更多...

Public 成员函数继承自 Emx::MediaParamCBase< MediaInfAov::Param >
	MediaParamCBase (MediaModE model, int32_t chn)

virtual	~MediaParamCBase ()=default

virtual ErrCodeE	SetParam (const MediaInfAov::Param &param)
	设置参数更多...

virtual ErrCodeE	SetTmpParam (const MediaInfAov::Param &param)
	设置临时参数更多...

virtual ErrCodeE	GetParam (MediaInfAov::Param &param)
	获取参数更多...

virtual ErrCodeE	GetRunningParam (MediaInfAov::Param &param)
	获取当前运行的参数更多...

virtual ErrCodeE	GetParamDefault (MediaInfAov::Param &param)
	获取默认参数更多...

virtual ErrCodeE	GetParamRange (Json::Value &range)
	获取参数取值范围更多...

virtual ErrCodeE	GetTotalChnNum (int &num)
	获取支持的总通道数量更多...

int32_t	GetChn ()
	获取通道号更多...

额外继承的成员函数
Public 类型继承自 Emx::MediaInfAov
enum class	AovModeE : uint8_t { Normal = 0 , LowPower }
	aov模式枚举更多...

enum class	AovStatusTypeE : uint8_t { VideoFrameSuccessful = 0 , VideoFrameFailed , TargetTrigger , TargetLost , EnterSleep , HighFrameMode , LowFrameMode , StopFrame }
	aov状态类型更多...

enum class	AovPushTypeE : uint8_t { SleepReady = 0 , HighFrameRate , LowFrameRate , UartData , WakeUp }
	aov推送类型更多...

静态 Public 属性继承自 Emx::MediaParamCBase< MediaInfAov::Param >
static const int	paramTimeOut

Protected 属性继承自 Emx::MediaParamCBase< MediaInfAov::Param >
uint32_t	m_modelId

int32_t	m_chn

构造及析构函数说明

◆ MediaAov()

Emx::MediaAov::MediaAov ( int32_t chn )

inlineexplicit

ErrCodeE Emx::MediaAov::UpdateStatus ( AovStatusTypeE type )

overridevirtual

参数

type [in] 状态类型
